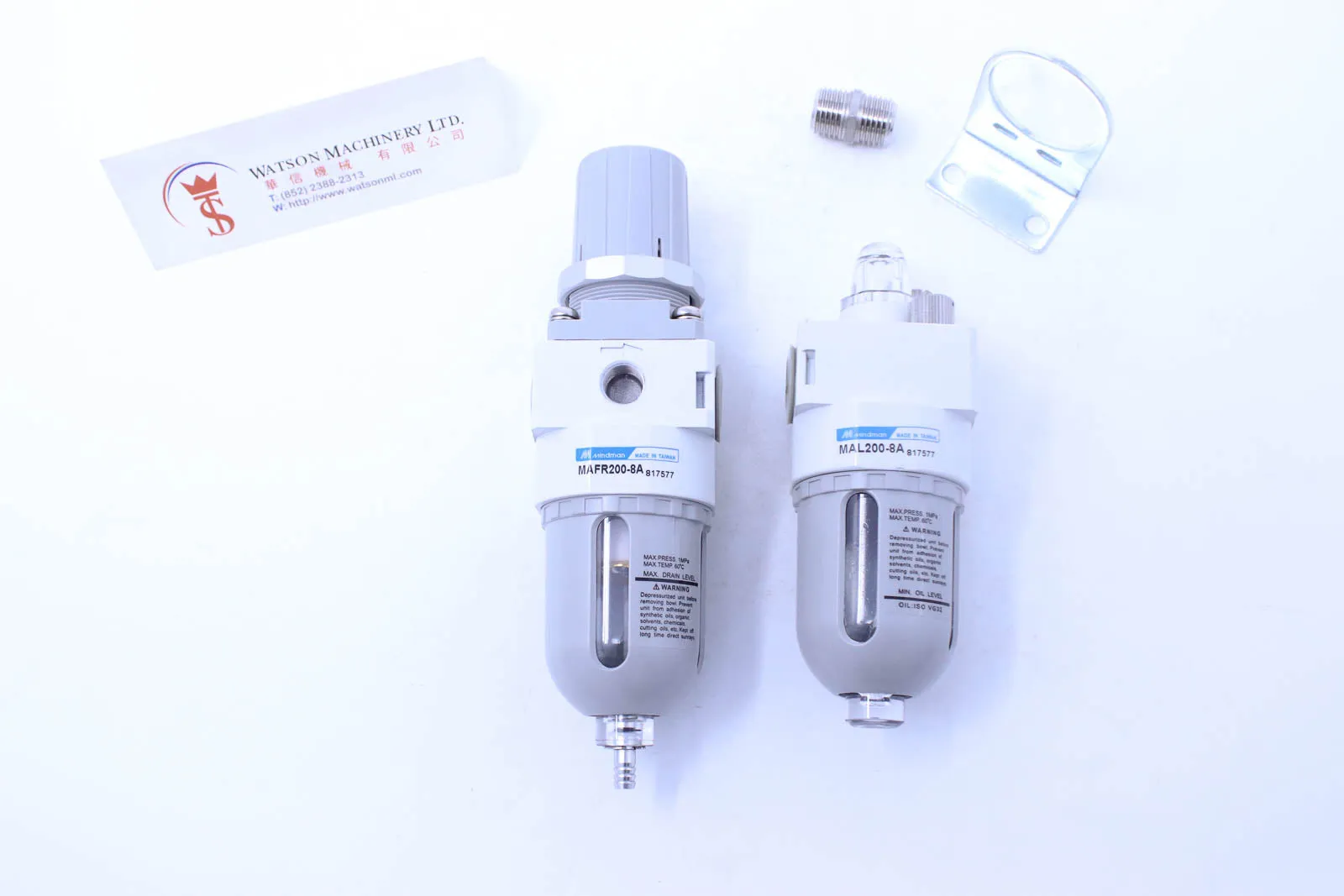

AIR UNIT (F.R.L. UNIT)
MACP200 series
MACP200-8A, 1/4
Technical Specifications
| Model | MACP200 |
| Bore no. | 6A / 8A |
| Port size | 1/8 / 1/4 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ 60℃ (No freezing) |
| Filter element | Standard: 40μm Option: 5μm |
| Lubricating oil capacity | 20 c.c, 35 c.c (MACP200L) |
| Min. flow for oil drip | 35l/min / 50l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge (PG-40), bracket |
