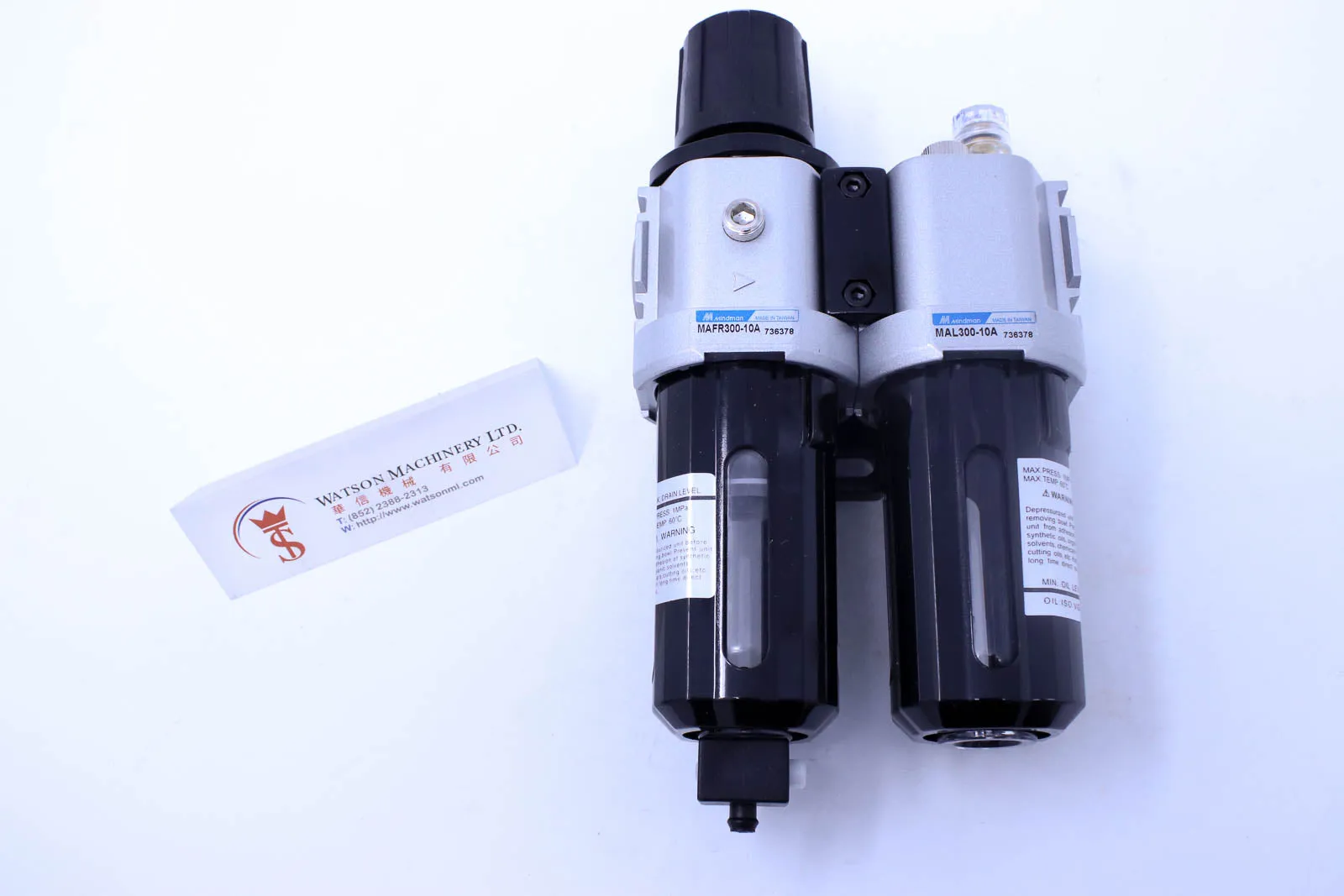

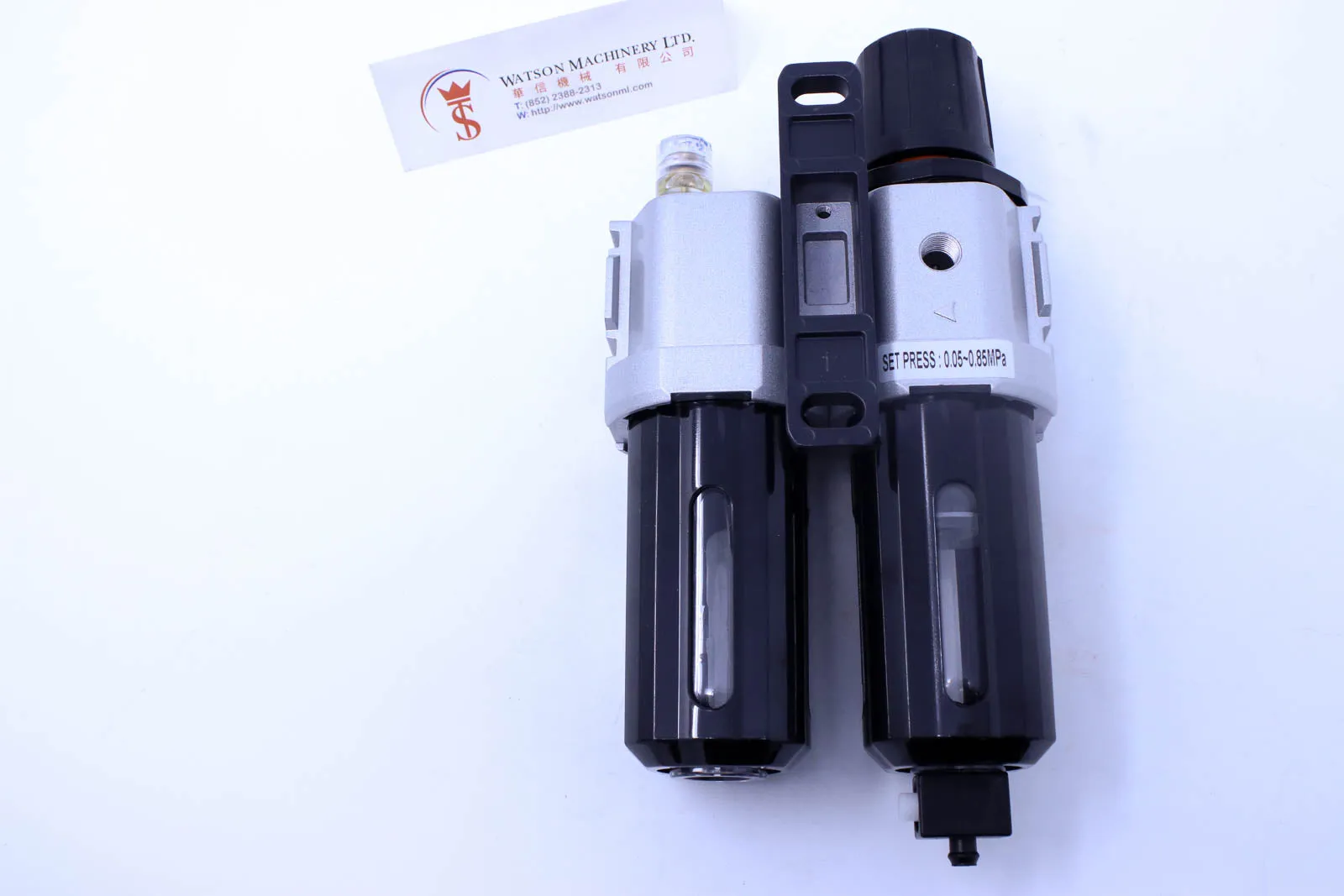

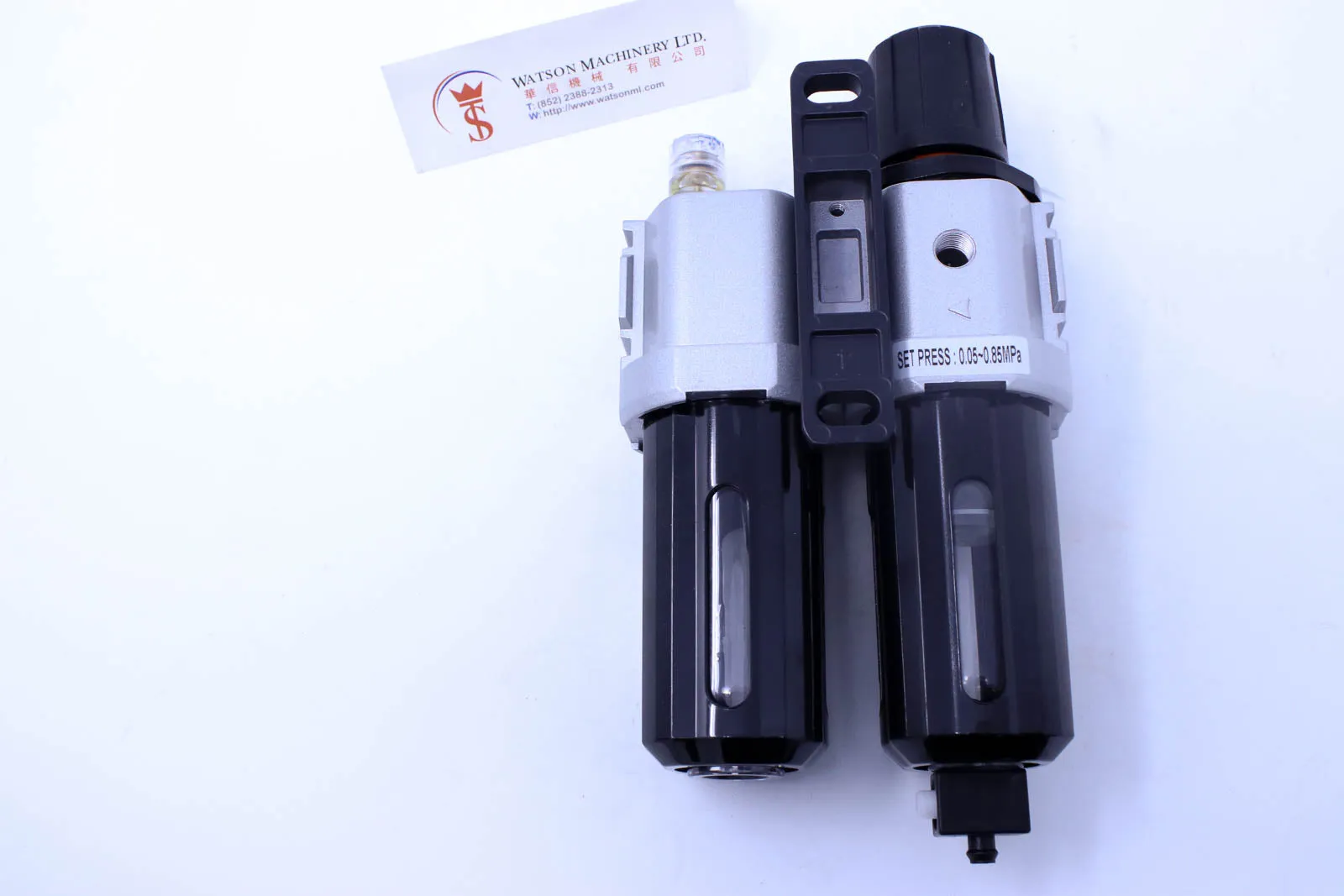

AIR UNIT (F.R.L. UNIT)
MACP300 series
MACP300-10A, 3/8
Technical Specifications
| Model | MACP300 |
| Bore no. | 8A /10A |
| Port size | 1/4 / 3/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ 60℃ (No freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Lubricating oil capacity | 55 c.c |
| Min. flow for oil drip | 50l/min / 60l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge (PG-40), T-type bracket |
